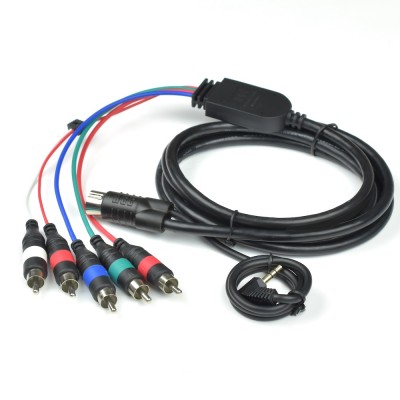

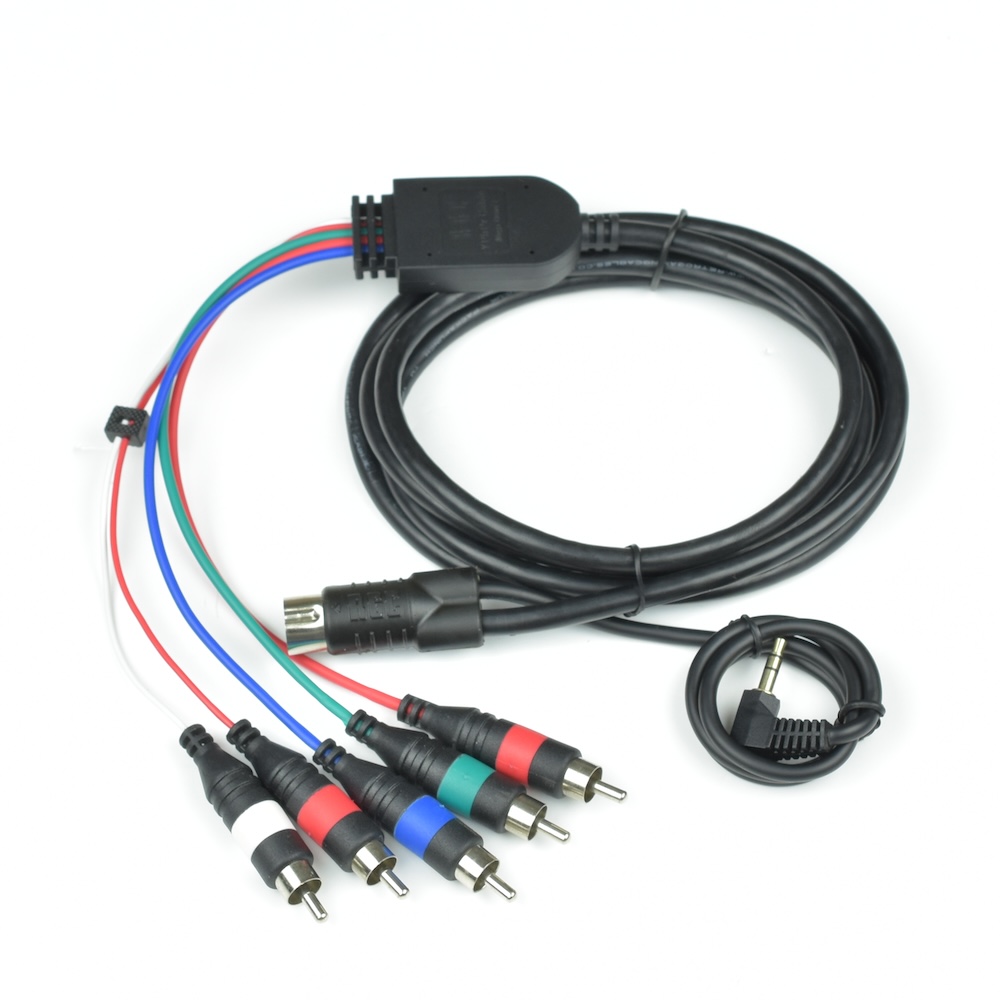

Sega Mega Drive 1 stereo sound Component YPbPr cable

Component YPbPr cable for the Sega Mega Drive 1 and Genesis 1, for connecting to televisions which support 240p via component video inputs. (Not compatible with Sega Mega Drive 1French RGB Models "1600-09" or 1601-01) Constructed using our proprietary PACKAPUNCH cabling.

Why use a PACKAPUNCH cable?:

Protects against external magnetic interference.
Protects against crosstalk between individual signals inside the cable.

Features:

True YPbPr video & Stereo sound.
Constructed from custom screened cable especially made for Retro Gaming Cables.
Internal RGB to YPbPr circuit designed by RetroTink.

Compatible with:

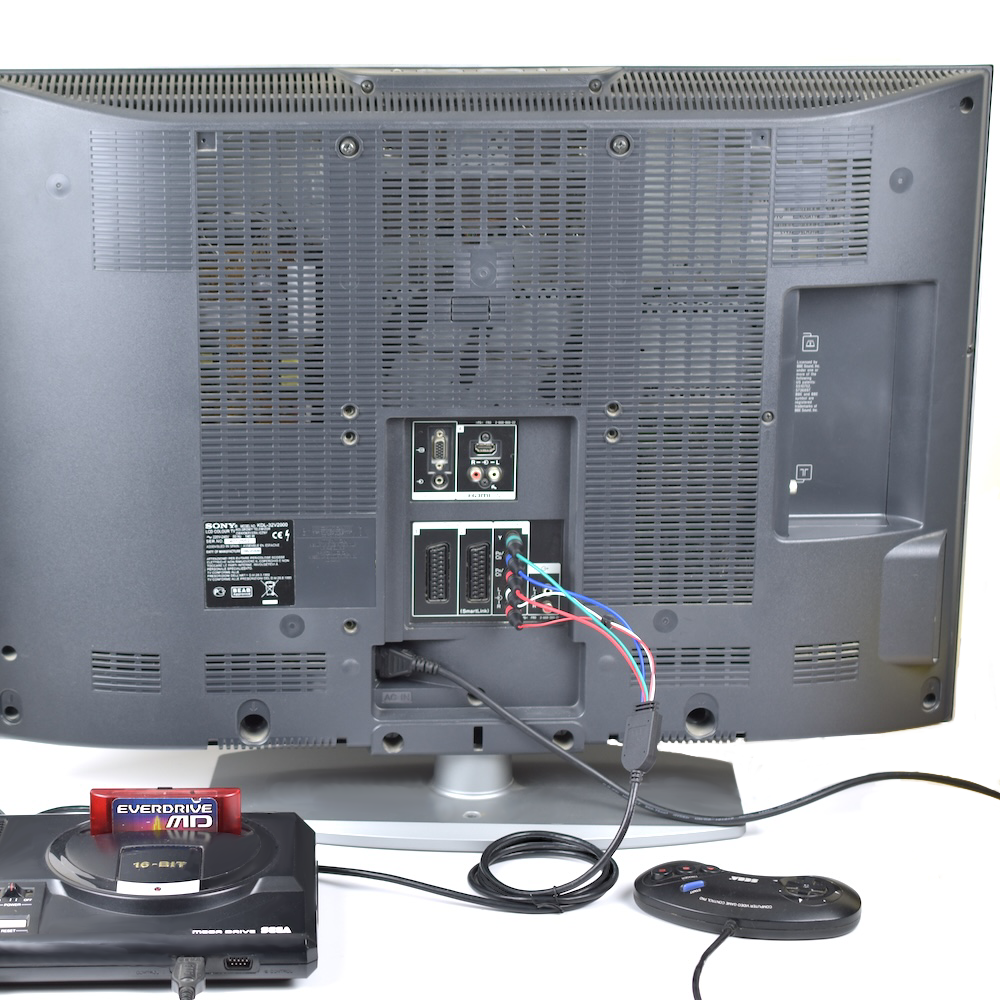

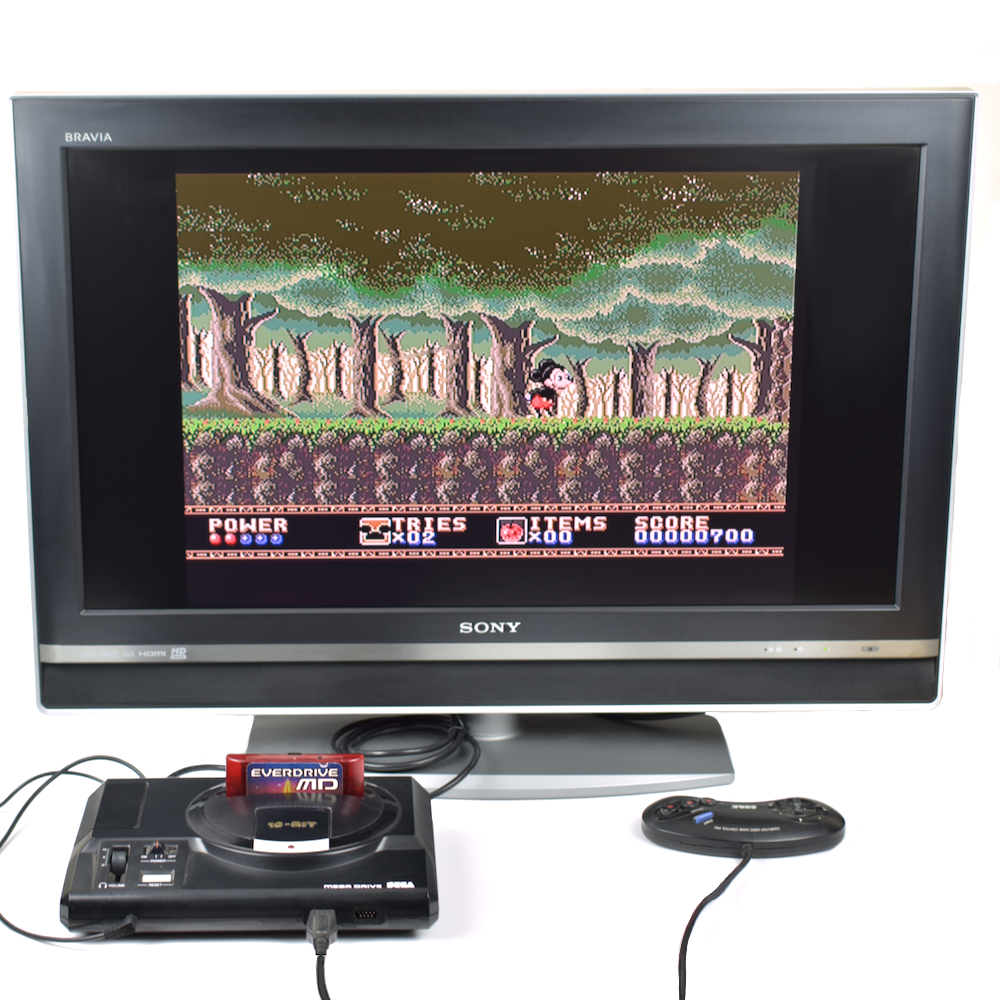

TV's with YPbPr component video inputs.
OSSC (Open Source Scan Converter)
RetroTink2, RetroTink2X Pro, RetroTink 5X and RetroTink4K.

All cables are tested before dispatch. This is not an official Sega Product.

Powered by RetroTINK

Compatibility
Region	NTSC, PAL, SECAM
Country	All Countries
Video and audio format
Audio type	Stereo Sound
Cable construction
Shielded?	Individually Shielded PACKAPUNCH cable. i.e. Each core inside the cable has its own shielding. Including the following; Red, Green, Blue, Sync & Audio. This is complemented by an overall foil shield.

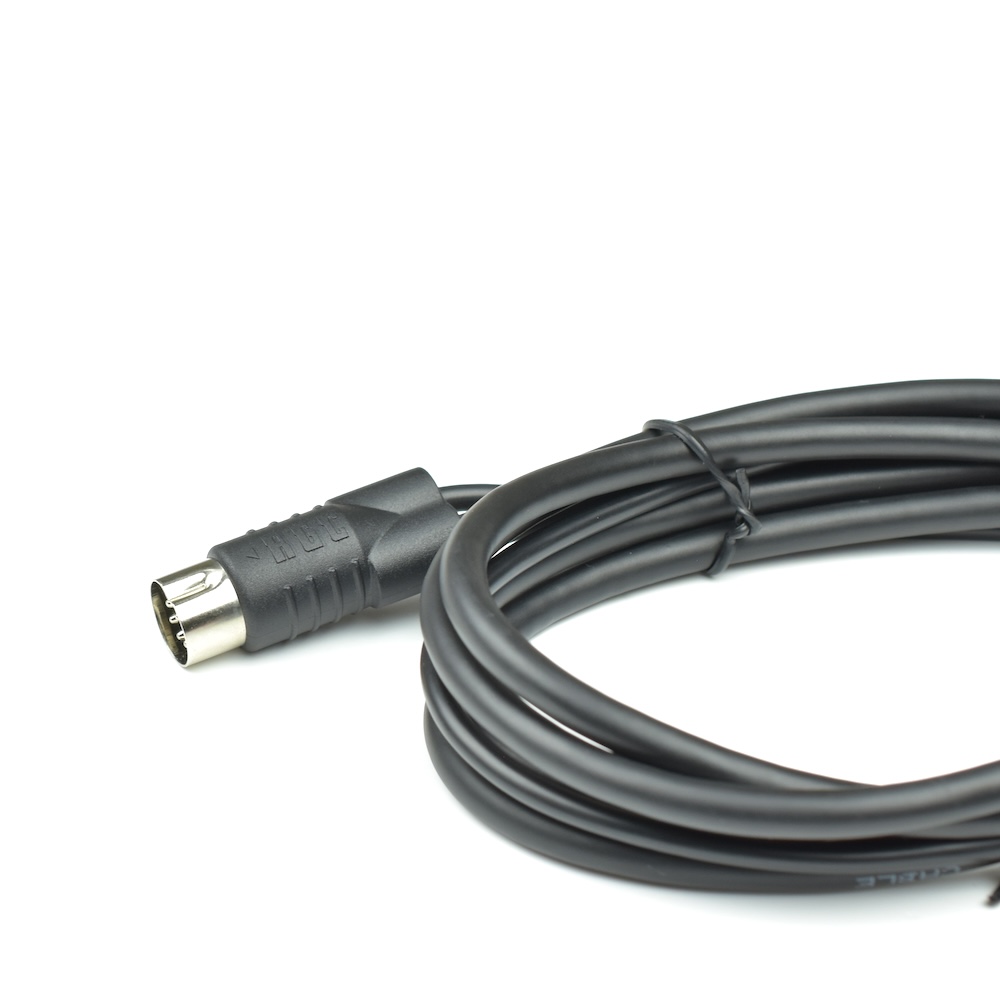

Connector A	8 pin Large U- DIN - Using our proprietary connector over moulding technology. With our RGC logo embedded on the top side of the connector.
Connector B	5 x Phono / RCA.

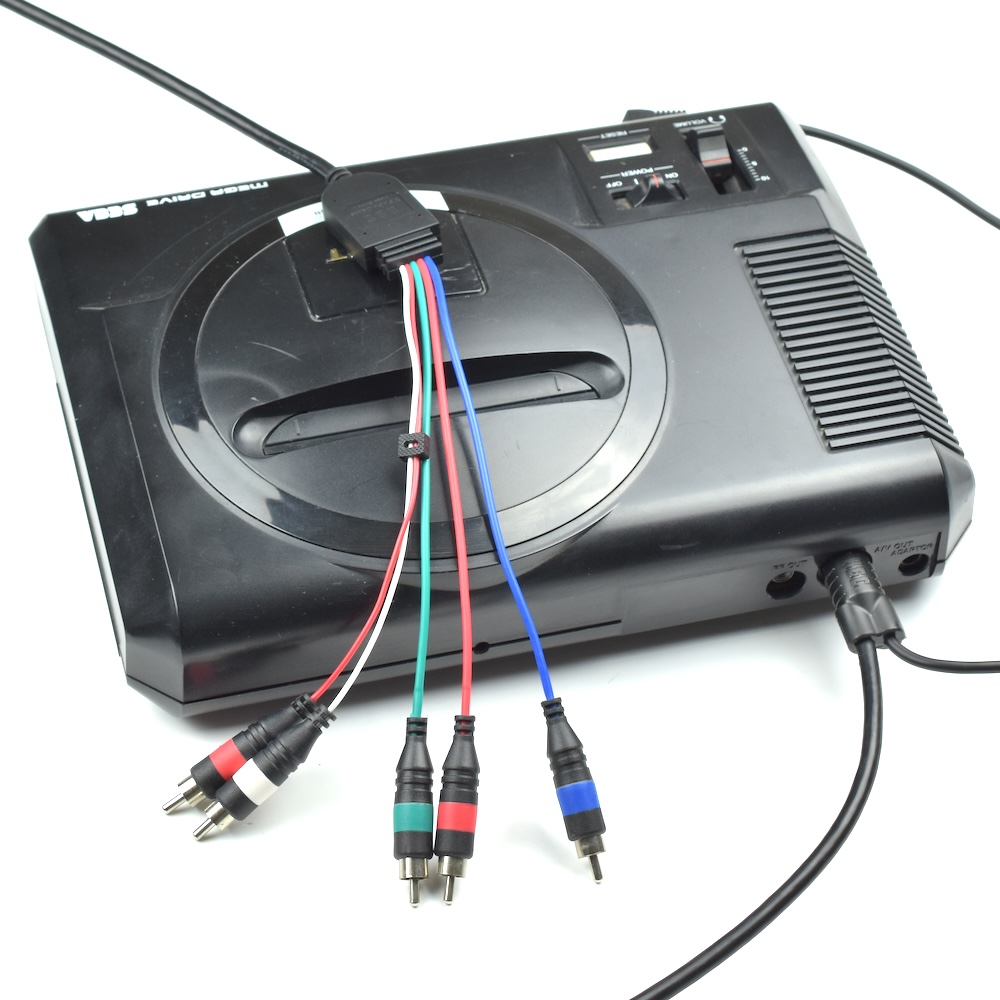

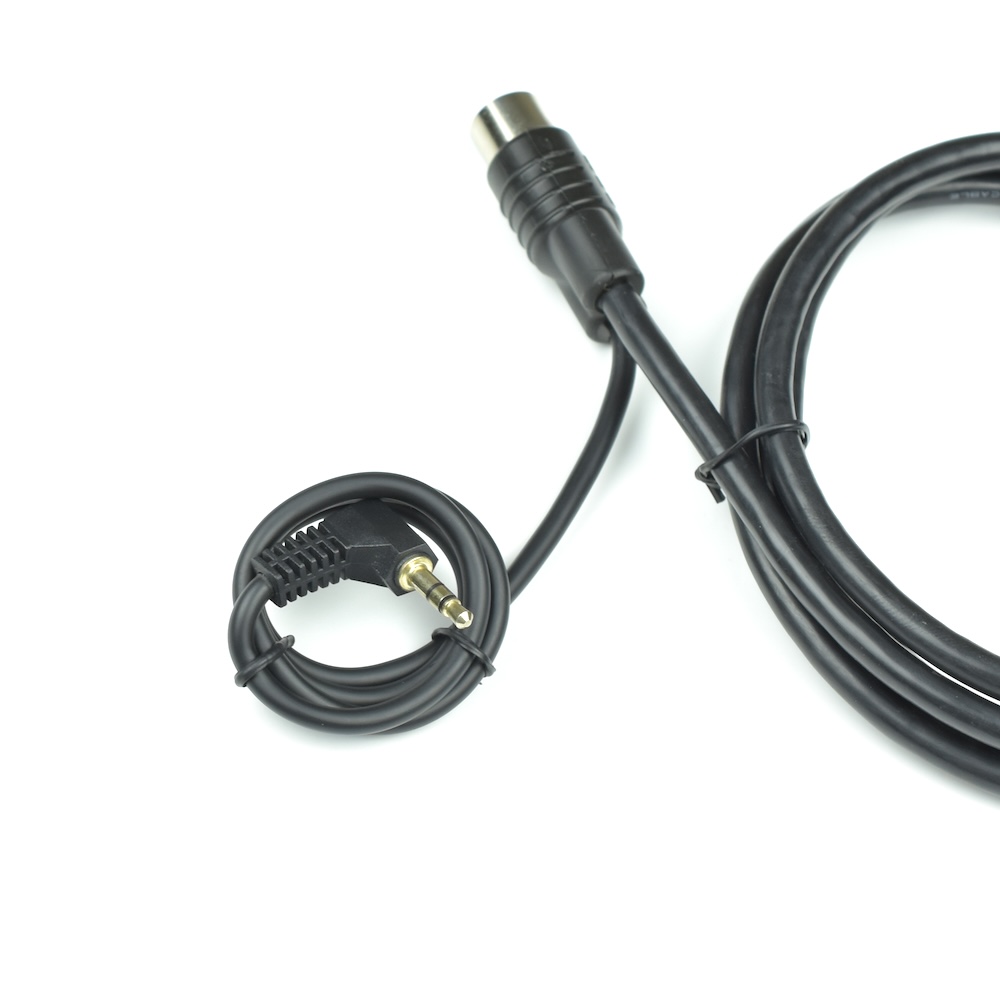

Connector C	3.5mm Stereo Jack, which plugs into the audio headphone socket at the front of the console.
Lead Length	1.8m / 6ft. Also Available as 3m / 10ft on a pre-order basis.
Weight	150g
