Coming soon!

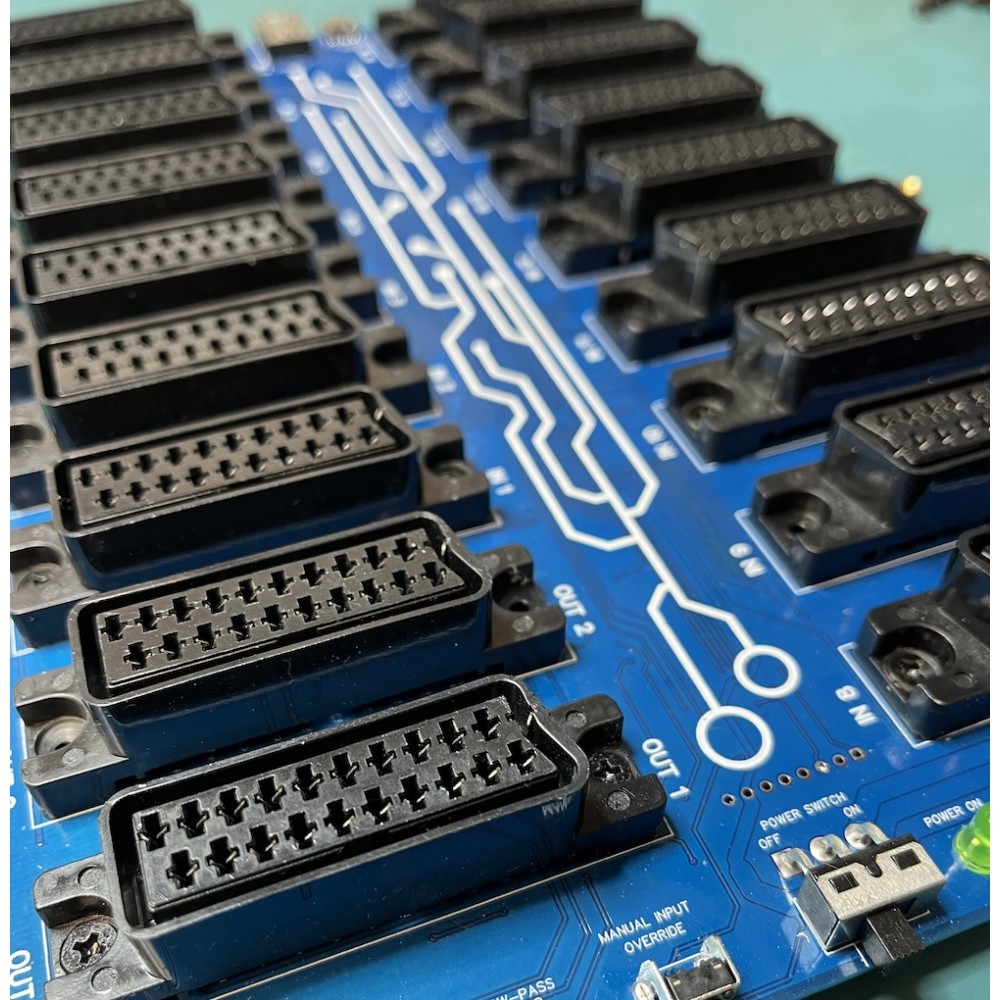

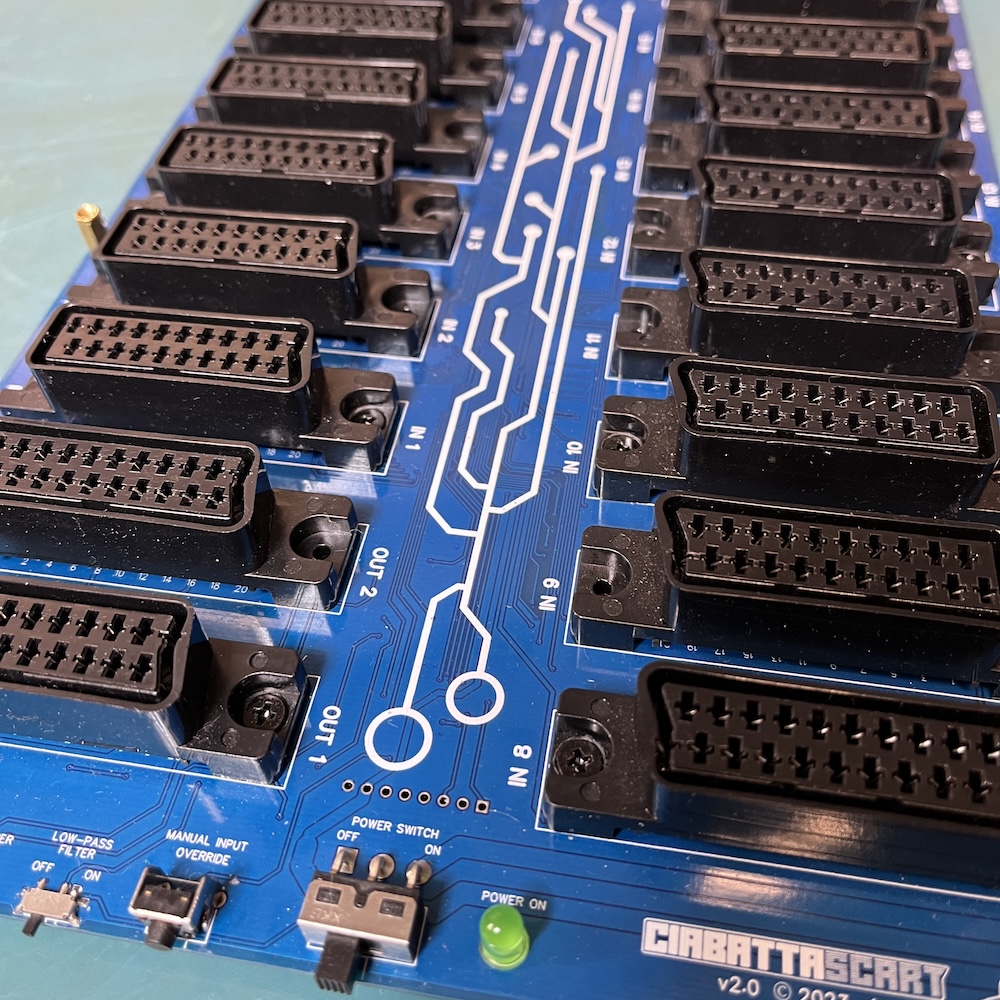

Plug and play six input automatic select SCART switching box, for connecting up to sixteen games consoles via SCART cables to two target devices, like a SCART Television, SCART to HDMI up-scaler etc. Based on the original CiabattaSCART by Vise & L.

Specifications:

• Auto detection and manual override.
• Dual output.
• Diode protection on the DC voltages to prevent voltage leakage into other consoles connected to the SCART switch.

• Deigned for EuroSCART cables only and not Japanese JP21
• Accepts all sync types, including sync over composite video, sync over luma and composite sync (CSYNC). However please ensure that any CSYNC cables are correctly attenuated for safe use.
• 3.5mm Stereo Jack output for connecting to external speakers.

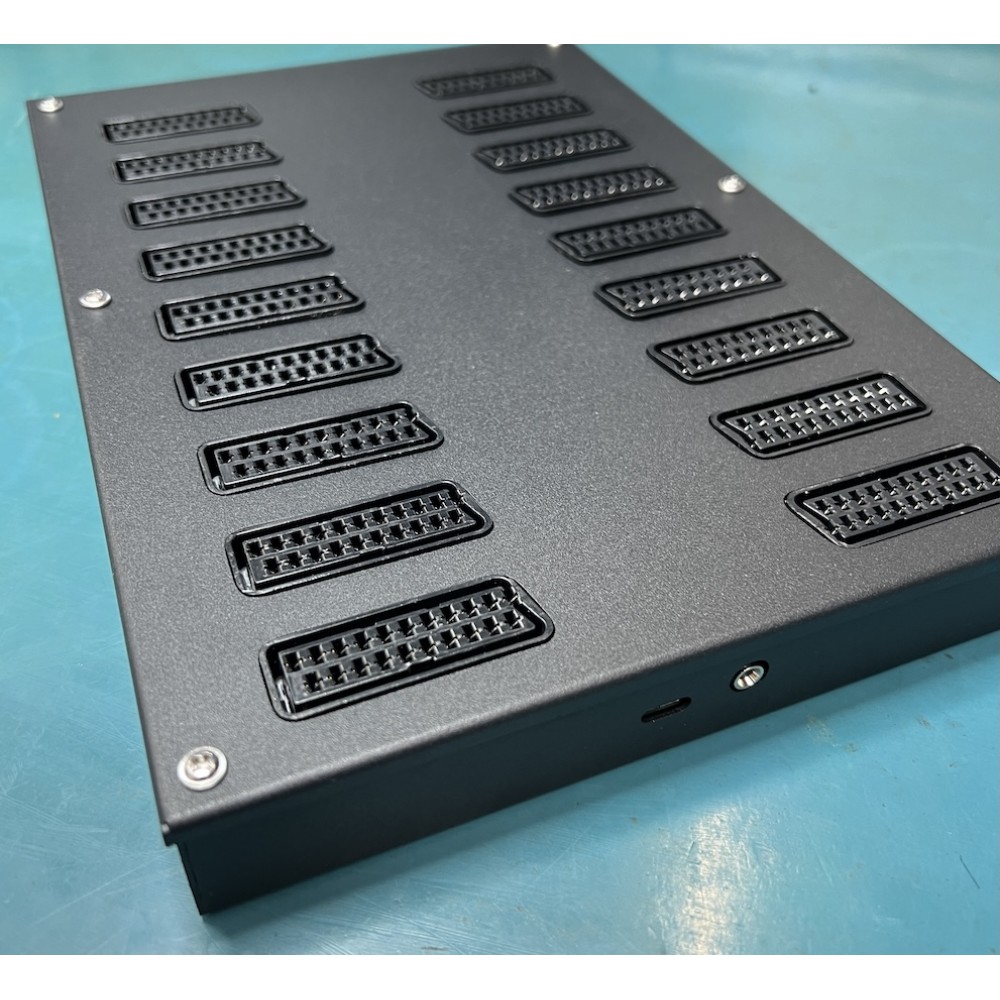

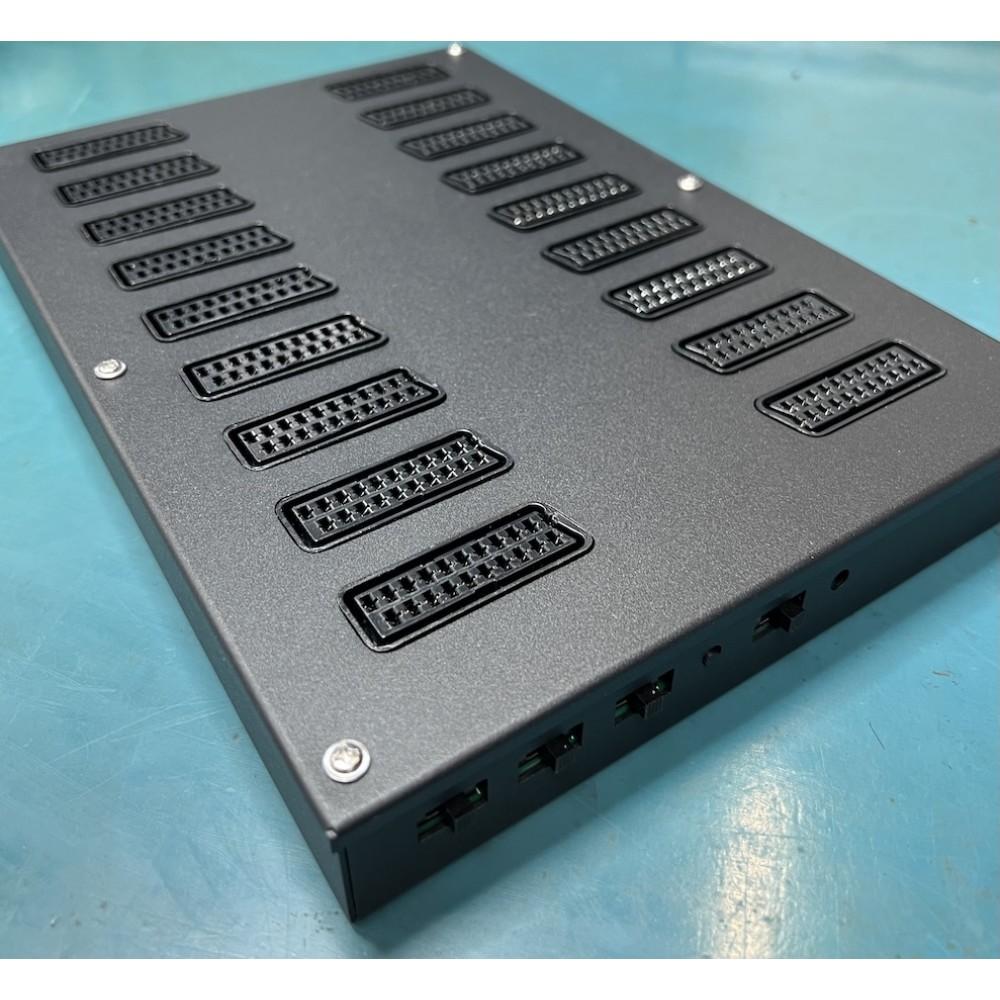

• Metal case.
• USB-C power input

Compatible with:

• SCART Televisions.
• SCART to HDMI up-scalers that support RGB video.
• OSSC (Open Source Scan Converter), RetroTink 2X SCART, RetroTink5X-Pro (however we sell a dedicated SCART switch which plugs directly into the RetroTink5X-Pro here, which removes the need for a male to male SCART cable) and Framemeister XRGB-mini.
• Sony PVM monitors that support RGB video, in conjunction with the appropriate SCART to BNC adapter cable.

Supports the following video formats:

• RGB
• Component video
• S-Video (Where supported, as some SCART televisions do not support S-Video via SCART especially if the TV has a dedicated S-Video Input )
• Composite video

All Switch boxes are tested before dispatch. Made in Great Britain.
